VTI Engine Package – 1300 Nord – Full Conversion up to +45 BHP

Description

This rebuild and tuning kit is engineered to elevate the Alfa Romeo 1300 engine to a new level of performance. By combining increased bore, optimized compression ratio, the kit delivers measurable gains in torque, drivability, and high-RPM horsepower. It is designed for demanding applications, including fast road use, track days, and competition builds.

Engineering Basis

• Bore options: 74.5 mm (1,303 cc) or 75.5 mm (1,343 cc).
• Stroke: 75 mm standard; supplied long-stroke crankshaft increases displacement and torque further on demand.
• Compression ratio: 10.0–11.5:1, depending on specification, improving thermal efficiency and mid-range response.
• Geometry: Conversion from undersquare (stock 74 × 75 mm) to oversquare (75.5 × 75 mm) enables higher RPM operation and improved valve breathing.
• RPM capability: ~7,800 rpm for fast-road/track applications; up to ~7,900–8,300 rpm in fully developed race builds with balanced bottom end and reinforced valve train.

Key Performance Features

• Rated at 110–125 hp in fast-road specification (bore increase, compression upgrade, sport cams, carburetors, headers).
• Up to 140–150 hp achievable in full race specification (long-stroke crankshaft, high compression, competition cams, 45–48 DCOE carburetors, head work, and tuned exhaust).
• Contact us for high-performance job on head.
• Stronger torque delivery across the rev range, with improved mid-range drivability.
• Peak power delivery at ~7,000–7,500 rpm, with extended top-end capability in race trim.
• Suitable for aggressive street builds, circuit racing, and track-day applications.

Kit Highlights

• Forged pistons and liners available in 74.5 mm and 75.5 mm diameters, supporting compression ratio increase and oversquare conversion.
• Engineered for seamless integration with aftermarket stainless-steel sports exhaust systems.
• Stainless-steel 4-2-1 headers are strongly recommended, providing up to +10 hp through improved exhaust scavenging and top-end breathing.

Important Notes

• High-capacity oil pumps are not included. The existing lubrication system must be verified to sustain high-performance operation.
• All crankshafts and pistons are machined from new. Lead times may exceed 4 weeks.
• Installation and tuning should be performed by qualified engine builders to ensure reliability under high load and high RPM operation.

Kit Content:

• Forged pistons with conventional rings, standard pins, and wire locks.
• Precision-engineered liners.
• Reinz head gasket and full engine gasket set.
• Standard rod and main bearings (oversize options available).
• IWIS race/road timing chains (top and bottom).
• Thrust washers, lock tabs, and complete hardware kit.
• Camshafts
• Intake and Exhaust Valves

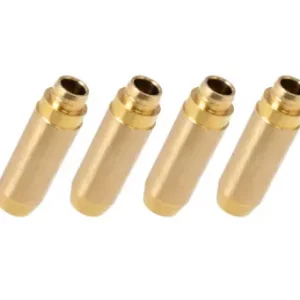

• Valves Guides
• Valves Springs
• Timing Pulley
• Full Gasket Kit
• Carburettors Mounting
• Sport Sparks
• Sport Flywheel
• Sport Horns
• Valves Seals

Summary

This kit represents a comprehensive solution for extracting significantly more performance from the Alfa Romeo 1300 engine. With bore enlargement, compression increase, and the option of a long-stroke crankshaft, the engine can be developed from its original ~90 hp output into a 110–125 hp fast-road specification or a 140–150 hp high-revving competition unit. When paired with stainless-steel headers and proper tuning, the engine delivers strong torque, sharper throttle response, and extended power at high rpm, making it highly competitive both on road and circuit.
